Unique Center DockMIJO MT02 12″ Electric Handbike for Swing-Away Wheelchair
12-Inch Wheel Power Attachment with Intermediate Connector for Moveable & Swing-Away Leg Wheelchairs
Engineering & Clinical Highlights
- Patented Intermediate Central Connector engineered specifically for wheelchairs with swing-away or detachable footrests.
- Preserves full leg freedom and footrest operation without obstructive side clamping hardware on the front legs.
- High-efficiency 350W brushless hub motor capable of conquering 8-12° urban ramps and inclines with ease.
- Intelligent cruise control and push-button electronic reverse function for effortless parking and tight maneuvering.
- High-capacity 36V 13Ah lithium battery delivering up to 50 km extended cruising range.
- Foldable aluminum handlebar stem for swift packing and vehicle trunk storage.
Verified Specifications & Factory Capabilities
Comprehensive mechanical benchmarks, wheelchair frame fitment standards, and private label customization for authorized distributors.
Wheelchair Compatibility
| Wheelchair Type | Manual Wheelchairs with Moveable / Swing-Away Footrests |
|---|---|
| Connector Type | Patented Intermediate Central Subframe Connector |
| Under-seat Frame Span | Adjustable 320 mm - 520 mm |
| Compatible Brands | Invacare, Sunrise Medical, Breezy, OttoBock, Drive Medical, Karma |
Electrical & Performance
| Motor Power | 36V 350W High-Torque Brushless Hub Motor |
|---|---|
| Battery Pack | 36V 13Ah Lithium-ion Battery with Anti-Theft Lock |
| Speed Levels | 1st: 12 km/h | 2nd: 18 km/h | 3rd: 25 km/h |
| Climbing Ability | 0 - 12 degrees slope |
| Operating Range | 45 - 50 km per charge |
| Charging Time | 4 - 6 hours with Smart Charger |
| Advanced Controls | Cruise Control Mode + Smart Push-Button Reverse Assist |
Mechanical & Physical
| Drive Wheel Size | 12-Inch Pneumatic Tire with All-Weather Tread |
|---|---|
| Overall Dimensions | 1050 mm x 560 mm x 700 mm |
| Net Weight | 13.3 kg (including battery) |
| Max Rider Weight | 120 kg (264 lbs) |
| Brake System | Heavy-Duty Front Disc Brake + Electronic Brake Cut-off |
| Suspension | Motorcycle-grade Front Hydraulic Fork |
| Handlebar | Quick-Foldable Ergonomic Stem |
B2B Packaging & Logistics
| Export Carton Size | 1080 mm x 420 mm x 450 mm |
|---|---|
| Gross Weight | 17.0 kg (reinforced 7-ply export carton with molded foam) |
| 20GP Container Load | 140 Units |
| 40HQ Container Load | 350 Units |
Professional Overview: MIJO MT02 12″ Electric Handbike
The MIJO MT02 solves one of the most common challenges faced by mobility equipment dealers: attaching a power tractor to a folding wheelchair equipped with swing-away or detachable footrests. Traditional side clamps obstruct the footrest swing mechanism and limit the rider’s leg freedom.
The MT02 utilizes an innovative Intermediate Central Connector that locks securely onto an under-seat transverse adapter. This keeps the rider’s leg space completely open and allows normal footrest release without removing the clamping base.
Combined with 350W of brushless motor power, 3-speed transmission, cruise control, and an intelligent reverse function, the MT02 is the definitive power attachment solution for folding and institutional wheelchairs.
Wheelchair Clamping & Model Selection Guide
Understanding the two distinct connector types ensures 100% fit for your clients. We engineer dedicated docking hardware for both rigid fixed-frame wheelchairs and folding wheelchairs with swing-away footrests.
Two-Sided Clamping System
Designed for manual wheelchairs with fixed front downtubes.
How It Works:
Two precision-machined 6061-T6 aluminum clamps fasten directly onto the left and right front frame tubes (diameters 20mm to 35mm). Quick-cam levers allow 5-second toolless docking.
Ideal Wheelchair Types:
- Rigid box-frame and open-frame active wheelchairs
- Fixed front downtubes without detachable footrests
- Popular models: Quickie (Nitrum, 7R), TiLite (ZR, ZRA, Aero T), OttoBock Zenit, Küschall, Panthera

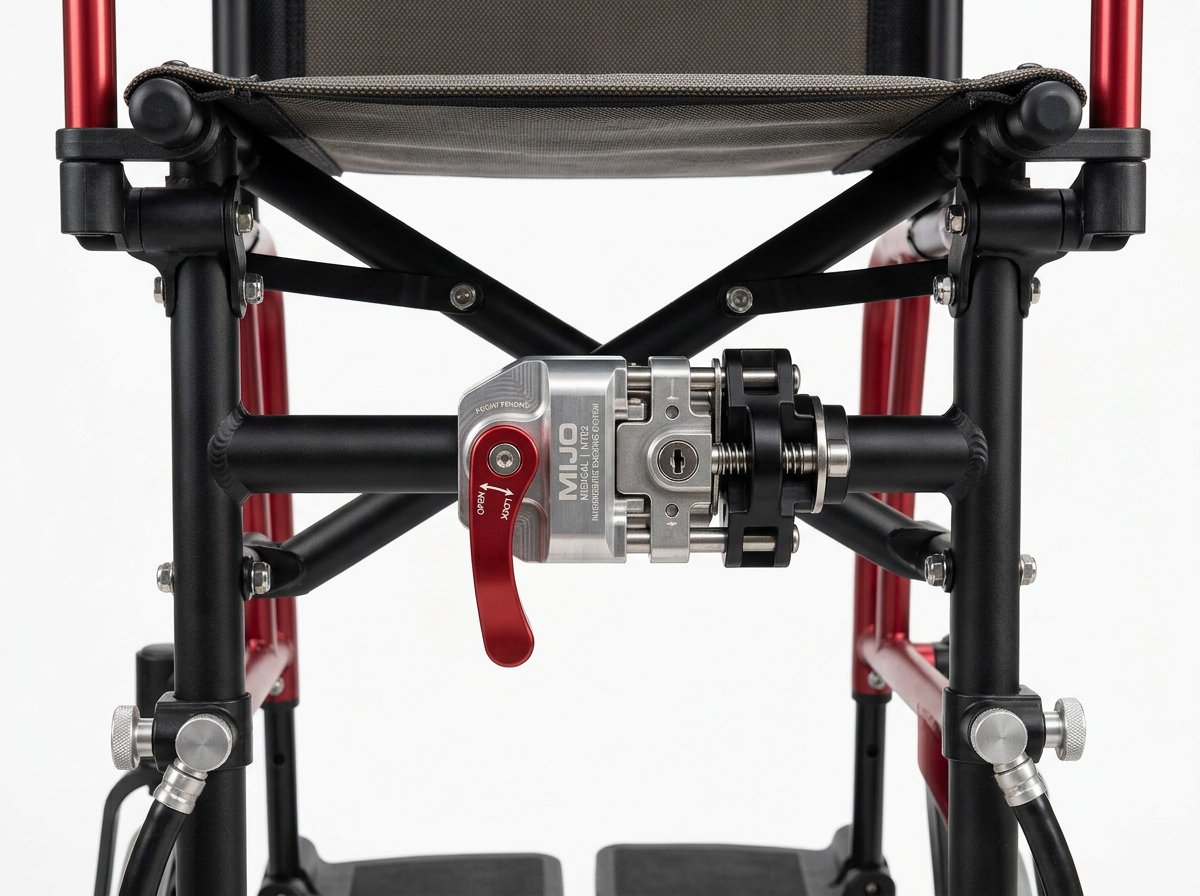

Intermediate Central Connector
Designed for wheelchairs with swing-away or removable footrests.
How It Works:
An adjustable transverse bracket mounts solidly beneath the seat frame, leaving the front legs completely unencumbered. Riders can swing away or remove footrests normally for easy standing transfers.
Ideal Wheelchair Types:
- Folding X-frame manual wheelchairs with swing-away legrests
- Elderly or rehabilitation wheelchairs requiring clear frontal leg access
- Popular models: Invacare (Action series), Sunrise Medical (Breezy), OttoBock (Start), Drive Medical, Karma
We support custom engineering tailored to your regional compliance standards, private label brand requirements, and hospital tenders.
Custom Frame Colors & Coatings
Anodized titanium, racing red, hospital white, or custom RAL powder-coating with corrosion-resistant treatment.
Laser Logo & Hardware Badging
High-precision fiber laser engraving on clamp arms and handlebar stems. Private label user manuals and serial number plates.
Controller & Speed Firmware
Pre-programmed speed profiles (6 km/h, 15 km/h, 25 km/h) to meet specific national road authority and medical reimbursement regulations.
Export Packaging & Palletizing
Heavy-duty drop-tested master cartons optimized for international ocean container loading (20GP / 40HQ) and air freight protection.
CE MDR 2017/745 Class I
Certified Class I medical device attachment for active wheelchairs under European Medical Device Regulation (EU) 2017/745.
ISO 13485:2016 Certification
Manufactured in certified medical device clean facilities with full trace records and incoming component QC verification.
2026 Technical Specification Sheet
Complete dimensional CAD blueprints, electrical torque curves, and container packing specifications in PDF format.
24 Months Full B2B Coverage
Expedited air courier replacement for electrical and mechanical components with zero customer downtime guarantee.
View Full Warranty Terms →Q1Which wheelchairs are compatible with the MIJO MT02 12″ Electric Handbike for Swing-Away Wheelchair?
The MIJO MT02 12″ Electric Handbike for Swing-Away Wheelchair (MT02) attaches to manual wheelchairs with 20mm-35mm frame tube diameters using Mijo patented quick-release clamps. It fits rigid frame wheelchairs as well as folding chairs with standard adapter hardware.
Q2What is the wholesale minimum order quantity (MOQ) and production lead time for MT02?
We support 1-unit functional sample evaluation orders for clinical fitment and road testing (7-10 Days Sample / 25-30 Days Bulk Container). For wholesale distributor container orders, the standard MOQ is 1 Unit (Sample) / 5 Units (Wholesale OEM) with a 25-30 day manufacturing cycle.
Q3Does the MT02 have medical and lithium battery transport certifications?
Yes, the MT02 complies with ISO 13485:2016 Medical Quality, CE MDR 2017/745 Class I, EN 12184:2014 Standard, UN38.3 & MSDS Safe Transport. All lithium battery assemblies include UN38.3 test summaries and MSDS documentation for seamless air express and ocean freight customs clearance.
Q4Can distributors order the MT02 with custom branding and regional speed limits?
Yes. We provide turnkey OEM/ODM services including laser-etched distributor logos, custom RAL color powder-coating, localized user manuals, and intelligent controller firmware programming to enforce 6 km/h, 15 km/h, or 25 km/h territory speed limits. All units come with a 24-month factory warranty.
