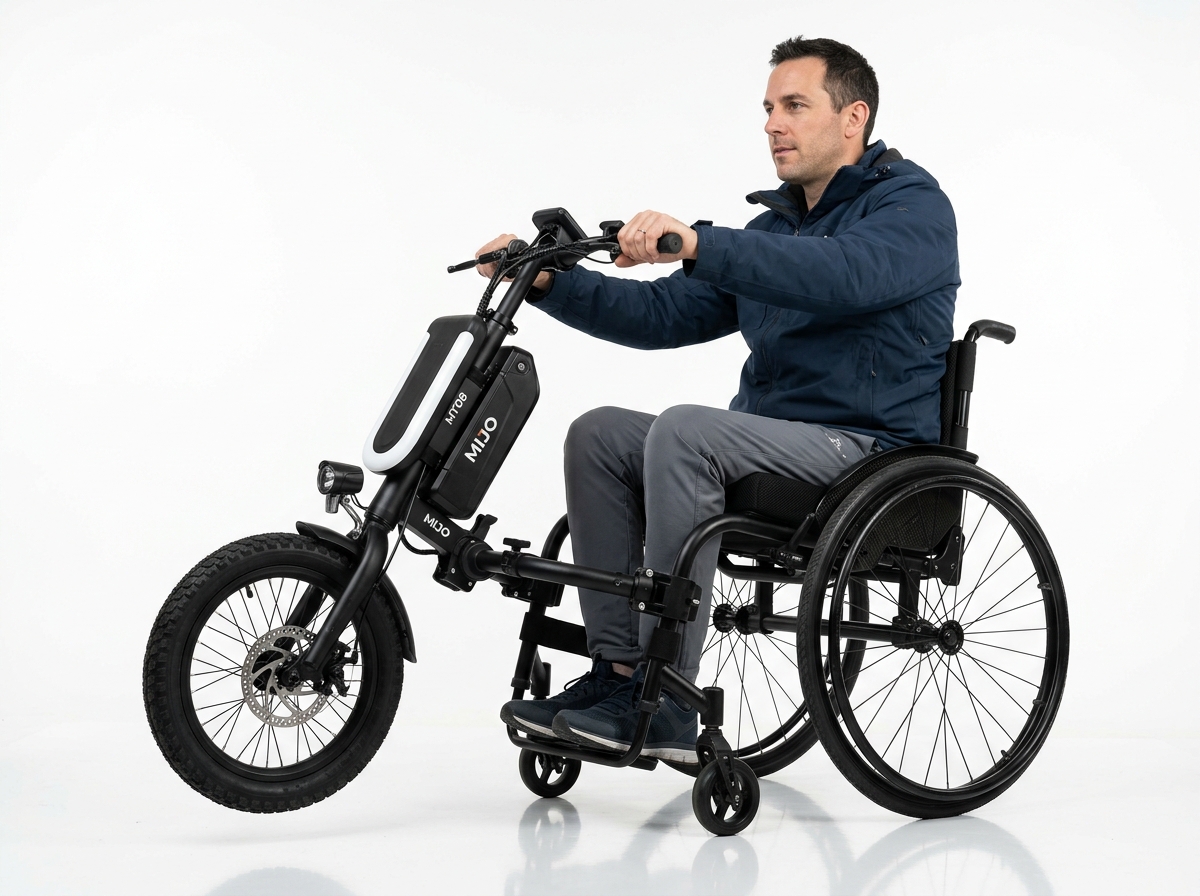

8″ Travel Best SellerMIJO MT08 8″ Portable Travel Electric Handbike Attachment
8-Inch Ultra-Compact Travel Wheelchair Power Add-on with Patented Quick-Docking Clamps
Engineering & Clinical Highlights
- High-efficiency 36V 350W (optional 48V 500W) brushless front hub motor delivering swift, quiet propulsion and effortless hill climbs up to 8° (14% grade).
- Patented Two-Sided Quick-Docking Clamps securely lock onto 20 mm - 35 mm manual wheelchair frame tubes in under 5 seconds without hand tools.
- Ultra-compact 8-inch solid/puncture-proof drive wheel and folding stem geometry weigh just 10.8 kg net (13.2 kg with battery), lifting effortlessly with one hand into vehicle trunks.
- Key-lockable 36V 10.4Ah (optional 48V 11.6Ah/13Ah Samsung) lithium-ion battery pack with quick slide-out release, delivering 30-40 km real-world cruising range.
- Ergonomic handlebar equipped with back-lit LCD speedometer display, 3-speed selector (6 / 15 / 25 km/h), reverse gear mode, and responsive disc brake + electronic motor cut-off.
- Certified Class I Medical Device attachment under EU MDR 2017/745 and compliant with EN 12184; lithium packs hold full UN38.3 & MSDS air travel documentation.
Verified Specifications & Factory Capabilities
Comprehensive mechanical benchmarks, wheelchair frame fitment standards, and private label customization for authorized distributors.
Wheelchair Compatibility
| Wheelchair Type | Manual Wheelchairs with Fixed Front Legs / Rigid Frame |
|---|---|
| Connector Type | Patented Two-Sided Quick-Release Clamping Brackets |
| Compatible Tube Diameter | 20 mm - 35 mm (Round, Oval, and Custom Extrusions) |
| Compatible Brands | Quickie, TiLite, OttoBock, Invacare, Küschall, Panthera, RGK, Sunrise Medical |
Electrical & Performance
| Motor Power | 36V 350W (Optional 48V 500W) Brushless Front Hub Motor |
|---|---|
| Battery Pack | 36V 10.4Ah Removable Lithium-ion (Samsung Cells, Anti-Theft Lock) |
| Cruising Range | 30 - 40 km per charge (depending on terrain and rider weight) |
| Speed Modes | 1st: 6 km/h (Pavement) | 2nd: 15 km/h | 3rd: 25 km/h (Road Legal) |
| Climbing Ability | 0 - 8 degrees slope (14% grade) |
| Charging Time | 4 - 5 hours with Smart Auto-Cut Charger |
| Controller | Intelligent FOC Sine-Wave Controller with Reverse (D/R) & Cruise Control |
| Cockpit Display | Smart Backlit LCD Screen (Speed, Battery Level, Odometer, Gear) |
Mechanical & Physical
| Drive Wheel Size | 8-Inch Puncture-Proof Solid / Pneumatic Tire with Aluminum Rim (Mini Wheel) |
|---|---|
| Brake System | High-Performance Mechanical Disc Brake + E-ABS Electronic Motor Cut-off |
| Net Weight | 8.5 kg (Chassis) / 10.8 kg (with Battery) / 11.0 kg (Total Road Weight with Clamps) |
| Max Rider Capacity | 115 kg (253 lbs) / Tested Max 120 kg |
| Dimensions (Unfolded) | 900 mm x 480 mm x 880 mm |
| Dimensions (Folded) | 760 mm x 460 mm x 320 mm (Trunk Fit) |
| Suspension | Integrated Front Spring Shock Absorber |
| Handlebar | Quick-Folding Aluminum Handlebar with Safety Latch |
B2B Packaging & Logistics
| Export Carton Size | 880 mm x 420 mm x 360 mm |
|---|---|
| Gross Weight | 14.2 kg (reinforced 7-ply export carton with custom molded foam) |
| 20GP Container Load | 200 Units |
| 40HQ Container Load | 490 Units |
Professional Overview: MIJO MT08 8″ Portable Travel Electric Handbike Attachment
The MIJO MT08 (globally recognized across distributor networks as the Mijo MT08 Electric Handcycle, Mijo MT08 Electric Handbike Mini, and MT08 Power Add-On) represents our benchmark 8-inch compact travel-optimized powered wheelchair add-on. Engineered directly by Nanjing Mijo Handbike Co., Ltd. (the dedicated power-assist and handbike manufacturing entity of Jiangsu Mijo Technology Co., Ltd. / formerly Mijo Mobility, www.mijomobility.com), the MT08 converts standard active manual wheelchairs into high-performance, motorized three-wheelers in under 5 seconds.
Designed specifically for active wheelchair users who prioritize urban agility, frequent vehicular transfers, and international air travel, the MT08 resolves the fundamental dilemma between heavy, cumbersome power chairs (35-45+ kg) and limited-range mobility aids. Weighing just 11.0 kg road-ready with battery and docking clamps, it combines genuine motorized autonomy with single-hand trunk-lifting portability.
Key Engineering & Clinical Advantages for Distributors:
-
Ultra-Compact 11.0 kg Travel Geometry & Rapid Stowage: The MT08 features a rapid one-step folding stem and collapsible handlebars. In its folded configuration (760 mm x 460 mm x 320 mm), the entire assembly lifts effortlessly with one hand into compact passenger car trunks, high-speed rail luggage shelves, and commercial taxi boots.
-
Dual-Tier Removable Lithium-Ion Battery System (LG / Samsung):
- Standard Travel Pack: 36V 7.8Ah lithium battery with premium Grade-A LG cells, delivering 25-35 km range and compliant with IATA airline passenger luggage regulations (<300Wh / <160Wh dual-modular options with UN38.3 & MSDS certification).
- Extended Range Pack: 36V 10.4Ah Samsung lithium pack providing 30-40 km real-world cruising for daily urban commuters.
-
Complete Cockpit Control & Rider Ergonomics: The handlebar features a high-visibility backlit LCD instrument cluster displaying real-time speed, battery level, trip odometer, and gear selection. Riders can seamlessly toggle between 3 speed limits (6 km/h for sidewalk safety, 15 km/h for city paths, 20-25 km/h for open roads), engage cruise control, and activate the electric reverse (D/R) mode for effortless maneuvering in confined spaces.
-
Dual Safety Braking & Shock Absorption: Equipped with a motorcycle-grade mechanical disc brake paired with an electronic motor cut-off sensor (E-ABS), the MT08 delivers immediate, controlled stopping power even on steep downhill gradients up to 8° (14% slope). An internal front spring fork dampens vibration across cobblestones and pavement expansion seams.
Wheelchair Fitment & Technical Comparison Guide:
| Dimension / Spec | MIJO MT08 (8″ Mini Travel) | MIJO MT01 (12″ Standard) | MIJO MT03 (16″ High-Torque) |
|---|---|---|---|
| Global Dealer Aliases | MT08 Mini / MT08 Handcycle | MT01 Standard Handbike | MT03 Off-Road Handbike |
| Drive Wheel Size | 8-Inch Solid / Pneumatic (Mini) | 12-Inch Pneumatic Tire | 16-Inch Pneumatic Tire |
| Road Weight (w/ Battery) | 11.0 kg (Ultra-Portable) | 13.3 kg (Balanced Daily) | 16.5 kg (Heavy-Duty Outdoor) |
| Max Rider Capacity | 115 kg (253 lbs) / 120 kg | 120 kg (264 lbs) | 130 kg (286 lbs) |
| Motor Power | 36V 350W (Opt 48V 500W) | 36V 350W Hub Motor | 48V 800W High-Torque Motor |
| Primary Use-Case | Airlines, Car Trunks, Urban Transit | Everyday Commuting & Parks | Off-Road, Trails & Gradients |
| Turning Radius | Ultra-Compact (Indoor Agility) | Standard Urban Turning | Wider Outdoor Turning Circle |
| Clamp Type | Two-Sided Clamps (20-35mm) | Two-Sided Clamps (20-35mm) | Two-Sided Clamps (20-35mm) |
B2B Factory Direct Pricing vs. International Retail Pricing:
- Factory B2B Wholesale Tier: $380.00 – $550.00 / unit (Tiered by order volume; 1-unit sample evaluation available).
- Overseas Retail Benchmark (MSRP): $1,690.00 USD (North America) / AED 3,505.00 (Middle East / Europe).
- Distributor Profit Margin: Provides authorized medical dealers and mobility shops with over 150% gross retail margin, backed by complete factory warranty and spare part replenishment.
Technical Documentation & Regulatory Downloads:
- User Manual & Schematic: Complete multi-language MT07/MT08 User Manual and wiring diagram available for authorized dealers.
- Medical Compliance: Full CE MDR (EU) 2017/745 Class I Medical Device Declaration of Conformity and DIN EN 12184 test reports.
- Transport Safety: UN38.3 battery vibration/altitude test summaries and MSDS for air express freight clearance.
Wheelchair Clamping & Model Selection Guide
Understanding the two distinct connector types ensures 100% fit for your clients. We engineer dedicated docking hardware for both rigid fixed-frame wheelchairs and folding wheelchairs with swing-away footrests.
Two-Sided Clamping System
Designed for manual wheelchairs with fixed front downtubes.
How It Works:
Two precision-machined 6061-T6 aluminum clamps fasten directly onto the left and right front frame tubes (diameters 20mm to 35mm). Quick-cam levers allow 5-second toolless docking.
Ideal Wheelchair Types:
- Rigid box-frame and open-frame active wheelchairs
- Fixed front downtubes without detachable footrests
- Popular models: Quickie (Nitrum, 7R), TiLite (ZR, ZRA, Aero T), OttoBock Zenit, Küschall, Panthera
Intermediate Central Connector
Designed for wheelchairs with swing-away or removable footrests.
How It Works:
An adjustable transverse bracket mounts solidly beneath the seat frame, leaving the front legs completely unencumbered. Riders can swing away or remove footrests normally for easy standing transfers.
Ideal Wheelchair Types:
- Folding X-frame manual wheelchairs with swing-away legrests
- Elderly or rehabilitation wheelchairs requiring clear frontal leg access
- Popular models: Invacare (Action series), Sunrise Medical (Breezy), OttoBock (Start), Drive Medical, Karma
We support custom engineering tailored to your regional compliance standards, private label brand requirements, and hospital tenders.
Custom Frame Colors & Coatings
Anodized titanium, racing red, hospital white, or custom RAL powder-coating with corrosion-resistant treatment.
Laser Logo & Hardware Badging
High-precision fiber laser engraving on clamp arms and handlebar stems. Private label user manuals and serial number plates.
Controller & Speed Firmware
Pre-programmed speed profiles (6 km/h, 15 km/h, 25 km/h) to meet specific national road authority and medical reimbursement regulations.
Export Packaging & Palletizing
Heavy-duty drop-tested master cartons optimized for international ocean container loading (20GP / 40HQ) and air freight protection.
CE MDR 2017/745 Class I
Certified Class I medical device attachment for active wheelchairs under European Medical Device Regulation (EU) 2017/745.
ISO 13485:2016 Certification
Manufactured in certified medical device clean facilities with full trace records and incoming component QC verification.
2026 Technical Specification Sheet
Complete dimensional CAD blueprints, electrical torque curves, and container packing specifications in PDF format.
24 Months Full B2B Coverage
Expedited air courier replacement for electrical and mechanical components with zero customer downtime guarantee.
View Full Warranty Terms →Q1Which wheelchairs are compatible with the MIJO MT08 8″ Portable Travel Electric Handbike Attachment?
The MIJO MT08 8″ Portable Travel Electric Handbike Attachment (MT08) attaches to manual wheelchairs with 20mm-35mm frame tube diameters using Mijo patented quick-release clamps. It fits rigid frame wheelchairs as well as folding chairs with standard adapter hardware.
Q2What is the wholesale minimum order quantity (MOQ) and production lead time for MT08?
We support 1-unit functional sample evaluation orders for clinical fitment and road testing (7-10 Days Sample / 25-30 Days Bulk Container). For wholesale distributor container orders, the standard MOQ is 1 Unit (Sample) / 5 Units (Wholesale OEM) with a 25-30 day manufacturing cycle.
Q3Does the MT08 have medical and lithium battery transport certifications?
Yes, the MT08 complies with ISO 13485:2016 Medical Quality, CE MDR 2017/745 Class I, EN 12184:2014 Standard, UN38.3 & MSDS Air Transit Approval. All lithium battery assemblies include UN38.3 test summaries and MSDS documentation for seamless air express and ocean freight customs clearance.
Q4Can distributors order the MT08 with custom branding and regional speed limits?
Yes. We provide turnkey OEM/ODM services including laser-etched distributor logos, custom RAL color powder-coating, localized user manuals, and intelligent controller firmware programming to enforce 6 km/h, 15 km/h, or 25 km/h territory speed limits. All units come with a 24-month factory warranty.
