All-Terrain FlagshipMIJO MT04 16″ All-Terrain Fat Tire Handbike for Swing-Away Wheelchair
16-Inch High-Power 800W All-Terrain Attachment with Intermediate Connector for Moveable-Leg Wheelchairs
Engineering & Clinical Highlights
- Heavy-duty Intermediate Central Subframe Connector engineered for moveable and swing-away leg wheelchairs.
- High-traction 16-inch fat pneumatic tire designed for cobblestones, grass, dirt trails, and outdoor exploration.
- High-torque 48V 800W brushless hub motor capable of conquering 12° steep terrain and obstacles.
- Long-range 48V 12Ah high-density lithium battery offering up to 60 km touring range.
- High-performance hydraulic disc brake system with electronic motor cut-off safety switch.
- Upgraded color LCD digital display: speed, distance, battery life gauge, and reverse gear indicator.
Verified Specifications & Factory Capabilities
Comprehensive mechanical benchmarks, wheelchair frame fitment standards, and private label customization for authorized distributors.
Wheelchair Compatibility
| Wheelchair Type | Manual Wheelchairs with Moveable / Swing-Away Legs |
|---|---|
| Connector Type | Patented Intermediate Heavy-Duty Central Subframe Connector |
| Under-seat Frame Span | Adjustable 320 mm - 540 mm |
| Compatible Brands | Invacare, Sunrise Medical, Breezy, OttoBock, Drive Medical, Karma, Meyra |
Electrical & Performance
| Motor Power | 48V 800W High-Torque Brushless Hub Motor |
|---|---|
| Battery Pack | 48V 12Ah Lithium-ion Battery with Key-Operated Lock |
| Speed Levels | 1st: 8 km/h | 2nd: 25 km/h | 3rd: 30 km/h (Configurable) |
| Climbing Ability | 0 - 12 degrees slope |
| Operating Range | 55 - 60 km per charge |
| Charging Time | 4 - 6 hours with Smart Charger |
| Advanced Electronics | Cruise Control + Reverse Gear Drive Assist |
Mechanical & Physical
| Drive Wheel Size | 16-Inch High-Traction All-Terrain Pneumatic Tire |
|---|---|
| Overall Dimensions | 1090 mm x 620 mm x 720 mm |
| Net Weight | 18.5 kg (including battery) |
| Max Rider Weight | 120 kg (264 lbs) |
| Brake System | Motorcycle-grade Hydraulic Disc Brake + Motor E-Brake |
| Suspension | Dual Hydraulic Front Suspension Fork |
| Handlebar | Foldable Heavy-Duty Aluminum Handlebar |
B2B Packaging & Logistics
| Export Carton Size | 1120 mm x 450 mm x 480 mm |
|---|---|
| Gross Weight | 22.5 kg (heavy-duty reinforced export carton with custom EPE foam) |
| 20GP Container Load | 110 Units |
| 40HQ Container Load | 270 Units |
Professional Overview: MIJO MT04 16″ All-Terrain Handbike

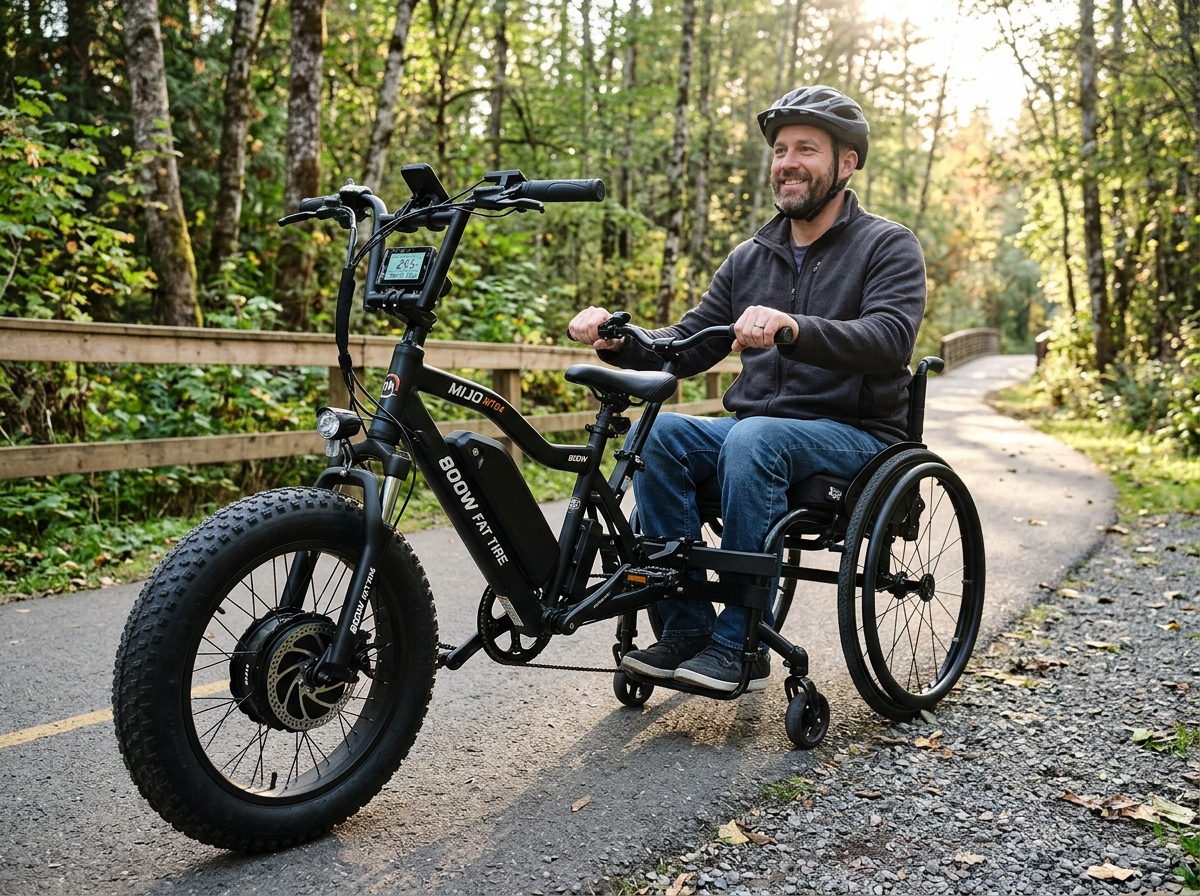

The MIJO MT04 combines the high power of an 800W brushless hub motor and a large 16-inch all-terrain tire with the versatile Intermediate Central Connector, making it the ultimate off-road power attachment for wheelchairs with moveable or swing-away footrests.
Riders who use folding wheelchairs are no longer limited to small wheels or smooth indoor surfaces. The MT04’s intermediate docking bracket keeps footrests completely operational while anchoring the 800W drive unit solidly under the wheelchair frame. With hydraulic braking, front suspension, and reverse assist, the MT04 delivers superior outdoor touring capability for worldwide distributors.
Wheelchair Clamping & Model Selection Guide
Understanding the two distinct connector types ensures 100% fit for your clients. We engineer dedicated docking hardware for both rigid fixed-frame wheelchairs and folding wheelchairs with swing-away footrests.
Two-Sided Clamping System
Designed for manual wheelchairs with fixed front downtubes.
How It Works:
Two precision-machined 6061-T6 aluminum clamps fasten directly onto the left and right front frame tubes (diameters 20mm to 35mm). Quick-cam levers allow 5-second toolless docking.
Ideal Wheelchair Types:
- Rigid box-frame and open-frame active wheelchairs
- Fixed front downtubes without detachable footrests
- Popular models: Quickie (Nitrum, 7R), TiLite (ZR, ZRA, Aero T), OttoBock Zenit, Küschall, Panthera
Intermediate Central Connector
Designed for wheelchairs with swing-away or removable footrests.
How It Works:

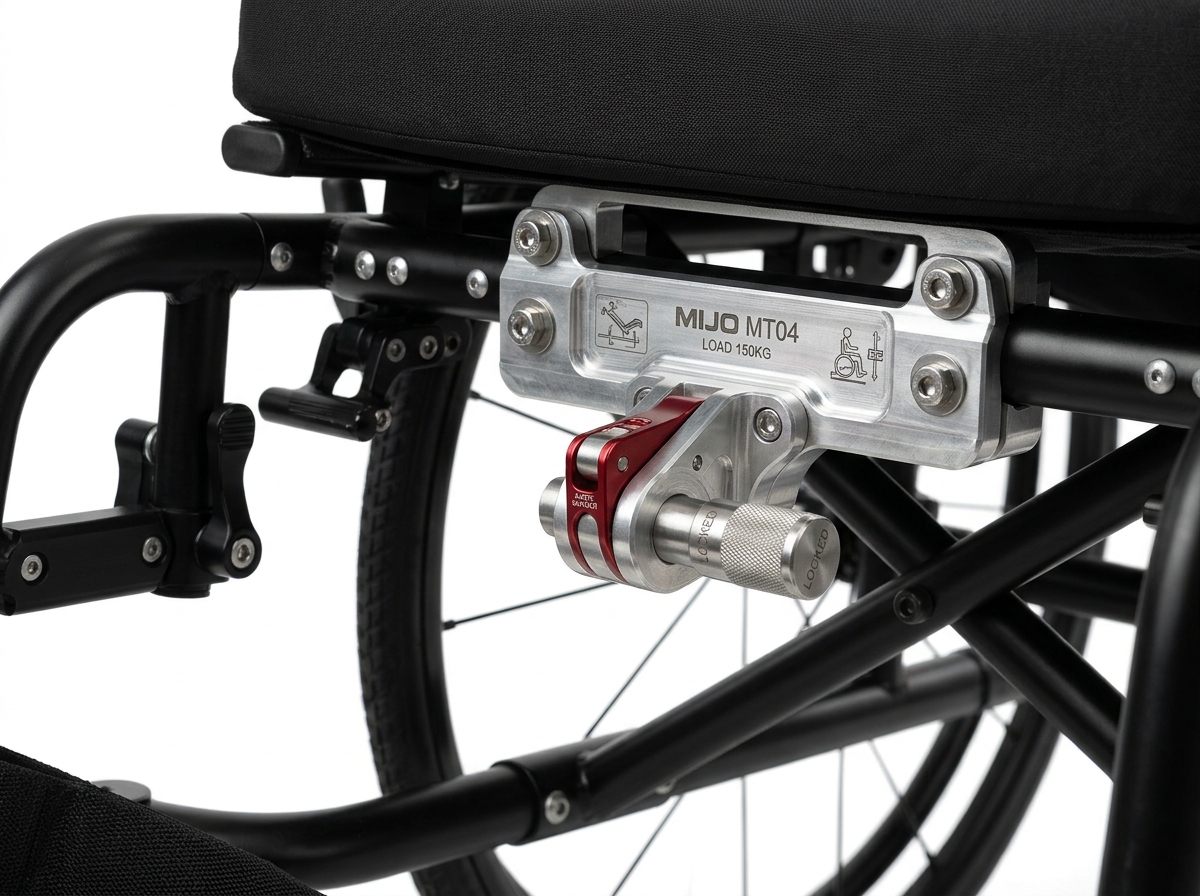

An adjustable transverse bracket mounts solidly beneath the seat frame, leaving the front legs completely unencumbered. Riders can swing away or remove footrests normally for easy standing transfers.
Ideal Wheelchair Types:
- Folding X-frame manual wheelchairs with swing-away legrests
- Elderly or rehabilitation wheelchairs requiring clear frontal leg access
- Popular models: Invacare (Action series), Sunrise Medical (Breezy), OttoBock (Start), Drive Medical, Karma
We support custom engineering tailored to your regional compliance standards, private label brand requirements, and hospital tenders.
Custom Frame Colors & Coatings
Anodized titanium, racing red, hospital white, or custom RAL powder-coating with corrosion-resistant treatment.
Laser Logo & Hardware Badging
High-precision fiber laser engraving on clamp arms and handlebar stems. Private label user manuals and serial number plates.
Controller & Speed Firmware
Pre-programmed speed profiles (6 km/h, 15 km/h, 25 km/h) to meet specific national road authority and medical reimbursement regulations.
Export Packaging & Palletizing
Heavy-duty drop-tested master cartons optimized for international ocean container loading (20GP / 40HQ) and air freight protection.
CE MDR 2017/745 Class I
Certified Class I medical device attachment for active wheelchairs under European Medical Device Regulation (EU) 2017/745.
ISO 13485:2016 Certification
Manufactured in certified medical device clean facilities with full trace records and incoming component QC verification.
2026 Technical Specification Sheet
Complete dimensional CAD blueprints, electrical torque curves, and container packing specifications in PDF format.
24 Months Full B2B Coverage
Expedited air courier replacement for electrical and mechanical components with zero customer downtime guarantee.
View Full Warranty Terms →Q1Which wheelchairs are compatible with the MIJO MT04 16″ All-Terrain Fat Tire Handbike for Swing-Away Wheelchair?
The MIJO MT04 16″ All-Terrain Fat Tire Handbike for Swing-Away Wheelchair (MT04) attaches to manual wheelchairs with 20mm-35mm frame tube diameters using Mijo patented quick-release clamps. It fits rigid frame wheelchairs as well as folding chairs with standard adapter hardware.
Q2What is the wholesale minimum order quantity (MOQ) and production lead time for MT04?
We support 1-unit functional sample evaluation orders for clinical fitment and road testing (7-10 Days Sample / 25-30 Days Bulk Container). For wholesale distributor container orders, the standard MOQ is 1 Unit (Sample) / 5 Units (Wholesale OEM) with a 25-30 day manufacturing cycle.
Q3Does the MT04 have medical and lithium battery transport certifications?
Yes, the MT04 complies with ISO 13485:2016 Medical Quality, CE MDR 2017/745 Class I, EN 12184:2014 Standard, UN38.3 & MSDS Safe Transport. All lithium battery assemblies include UN38.3 test summaries and MSDS documentation for seamless air express and ocean freight customs clearance.
Q4Can distributors order the MT04 with custom branding and regional speed limits?
Yes. We provide turnkey OEM/ODM services including laser-etched distributor logos, custom RAL color powder-coating, localized user manuals, and intelligent controller firmware programming to enforce 6 km/h, 15 km/h, or 25 km/h territory speed limits. All units come with a 24-month factory warranty.
